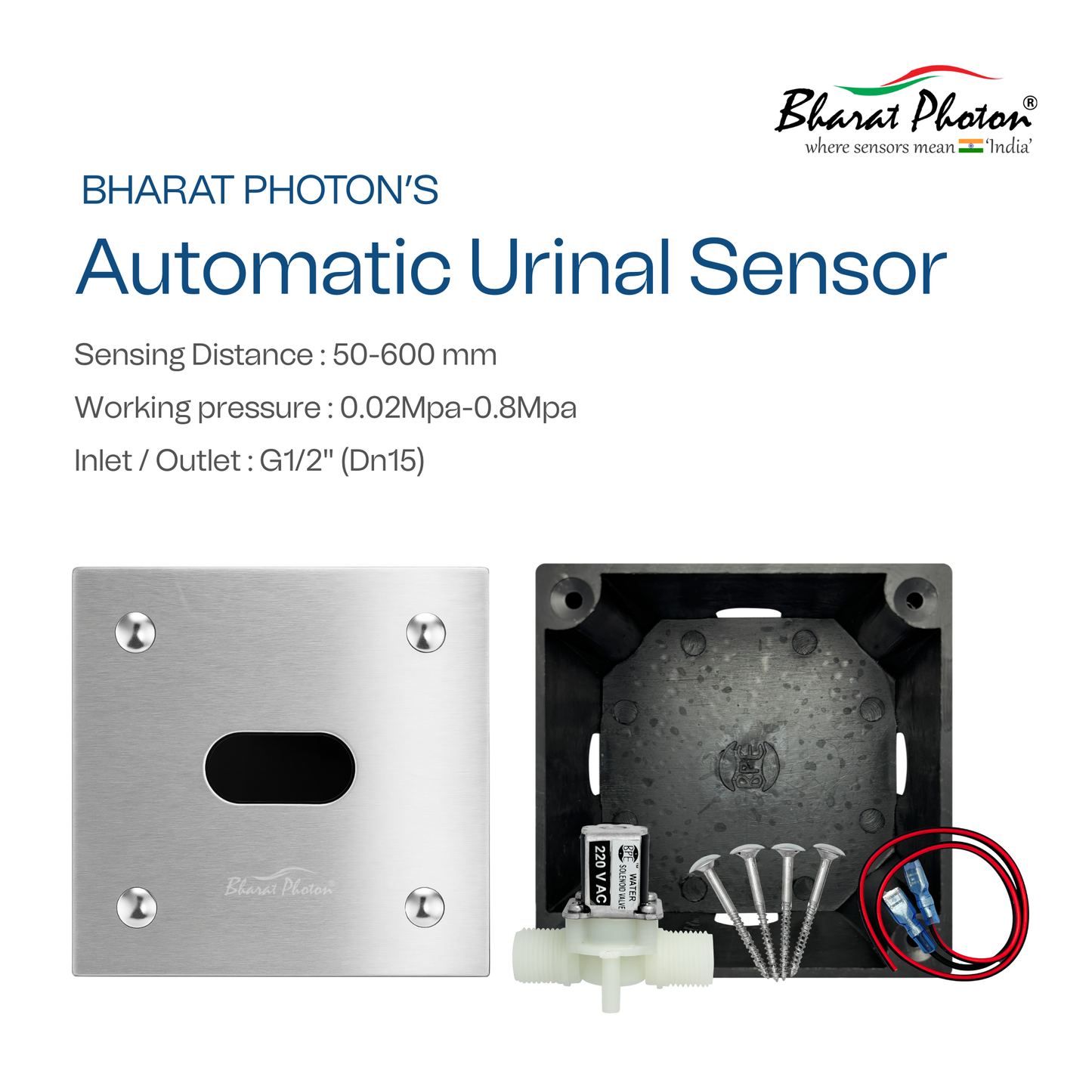

BP-U105 Concealed Urinal Sensor (Brushed S.S.) AC

BP-U105 Concealed Urinal Sensor (Brushed S.S.) AC

Rs. 4,990.00
Rs. 5,790.00 Rs. 4,990.00
13% OFF Sold out
Shipping calculated at checkout.
Power

BP-U105 Concealed Urinal Sensor delivers touchless hygiene with brushed stainless steel construction. AC-powered design ensures reliable, maintenance-free operation. Ideal for commercial facilities prioritizing sanitation and water conservation through automated flushing technology.

Features

  • Touch-free infrared sensor operation
  • Hygienic, hands-free water activation
  • 1-minute automatic safety shut-off
  • Chrome plated ABS body for durability
  • Water-efficient performance
  • Designed for medium to large
  • Suitable for commercial & residential applications
  • Available in AC power options Only

Specifications

  • Power: 240V AC
  • Application: No-touch infrared urinal flush sensor
  • Sensing Range: 50–650 mm
  • Water Pressure: 0.02–0.8 MPa (0.05 MPa min for proper flow)
  • Flush Time: 7–8 sec post-flush
  • Connection: G1/2” (DN15) inlet/outlet
  • USP: Inbuilt brass flow control, easily serviceable
  • Material: SS screw-less front, ABS frame & box, PoM solenoid with brass flow control
  • Warranty: 2 years (manufacturing defects only)

Usage Information

The BP-U105 Automatic Urinal Sensor is designed for modern washrooms requiring touch-free hygiene and controlled water usage. Ideal for offices, malls, hotels, hospitals, airports, educational institutions, and premium residential projects.

Power Options Explained:

  • AC (Electric Operated): Ideal for high-traffic locations with continuous power supply.

Warranty & Support

  • 2 Years Manufacturer Warranty (against manufacturing defects)
  • Warranty covers sensor unit and internal components
  • Excludes physical damage, improper installation, and water impurity damage
  • Nationwide service support available
  • Genuine spare parts and accessories available on request

Installation

  • Urinal wall-mounted installation
  • Requires standard G1/2” plumbing connection
  • DC models operate on battery (6V)
  • AC models require 220V power supply
  • Recommended professional plumber/electrician installation
  • Ensure water pressure is within specified range for optimal flushing
View full details

Frequently Asked Questions

What warranty is provided?

The product comes with a manufacturer warranty covering manufacturing defects. Warranty terms may vary by model.

Is the urinal sensor suitable for commercial washrooms?

Yes, it is ideal for commercial spaces such as malls, offices, airports, hotels, hospitals, and public restrooms due to its hygienic, touch-free operation.

Can the urinal sensor be installed in existing urinals?

Yes, the urinal sensor is designed for easy retrofit installation and can be installed in most standard urinals without major plumbing changes.

Does using a urinal sensor help save water?

Absolutely. The sensor flushes only when required, reducing unnecessary water usage and helping maintain an eco-friendly and cost-efficient washroom.

Is the urinal sensor compatible with both AC and DC power?

Yes, the urinal sensor is available in DC type as well as AC/DC type, offering flexible power options based on installation requirements.

How does a urinal sensor work?

A urinal sensor uses infrared (IR) technology to detect user presence. When a person steps away after use, the sensor automatically activates the flush without any physical contact.
