Bharat Photon's

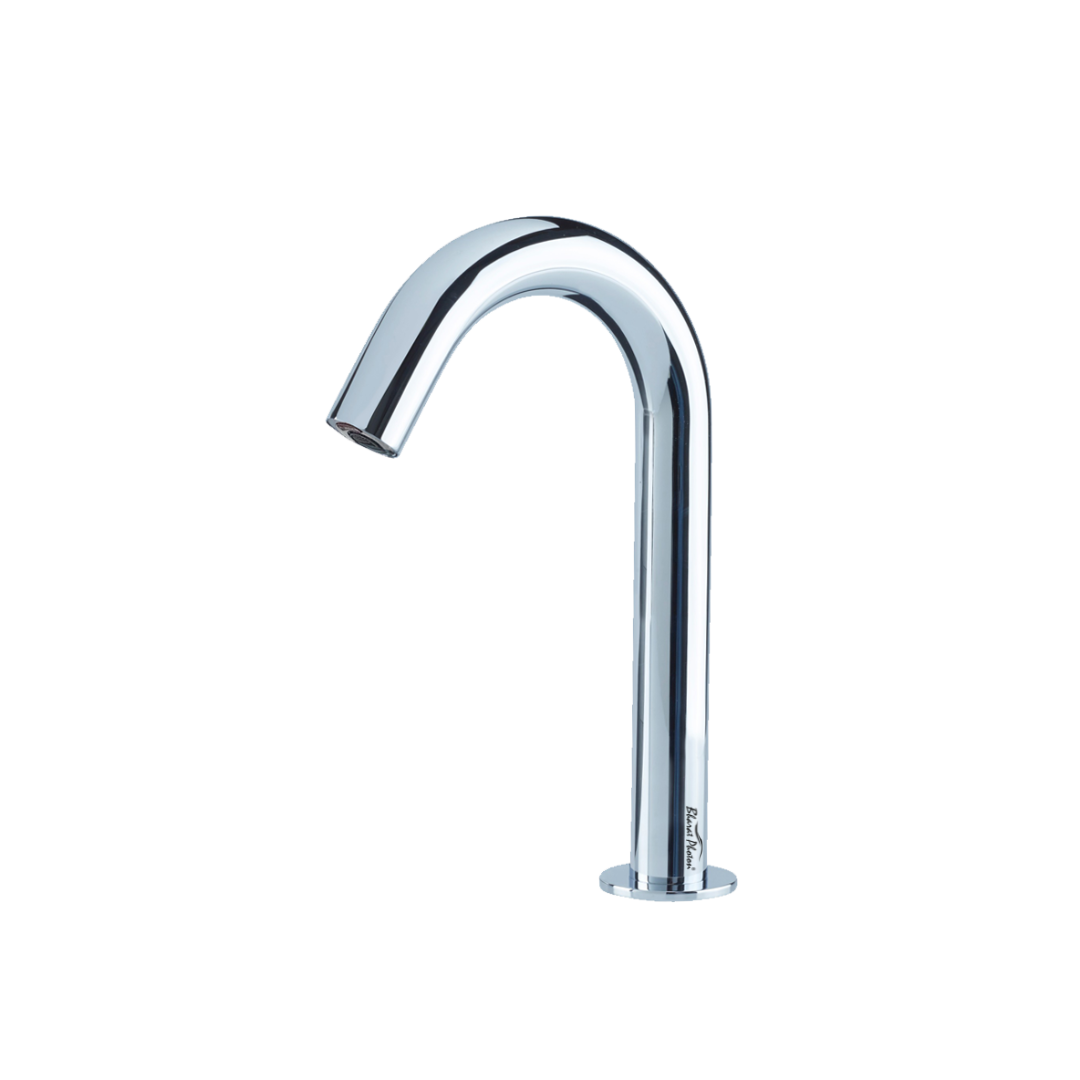

BP-F29 Mouth Sensor Basin Tap

BP-F29 Mouth Sensor Basin Tap

Rs. 5,590.00
Rs. 6,990.00 Rs. 5,590.00
20% OFF Sold out
Shipping calculated at checkout.
Power Type

BP-F292 battery-operated sensor unit powered by AA alkaline cells. Ideal for locations without electrical wiring, offering easy installation and retrofit-friendly performance.

Features

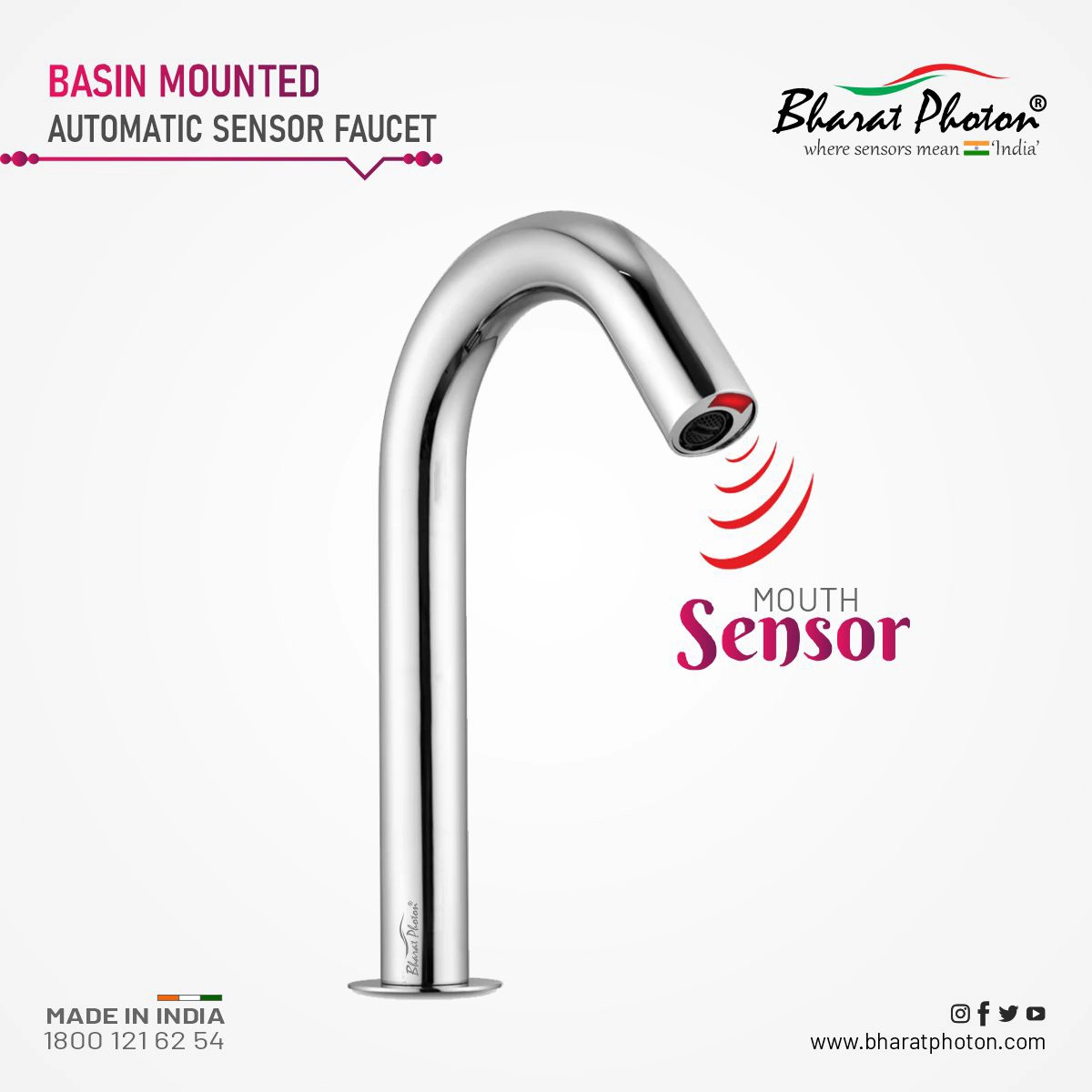

  • Touch-free infrared sensor operation
  • Hygienic, hands-free water activation
  • 1-minute automatic safety shut-off

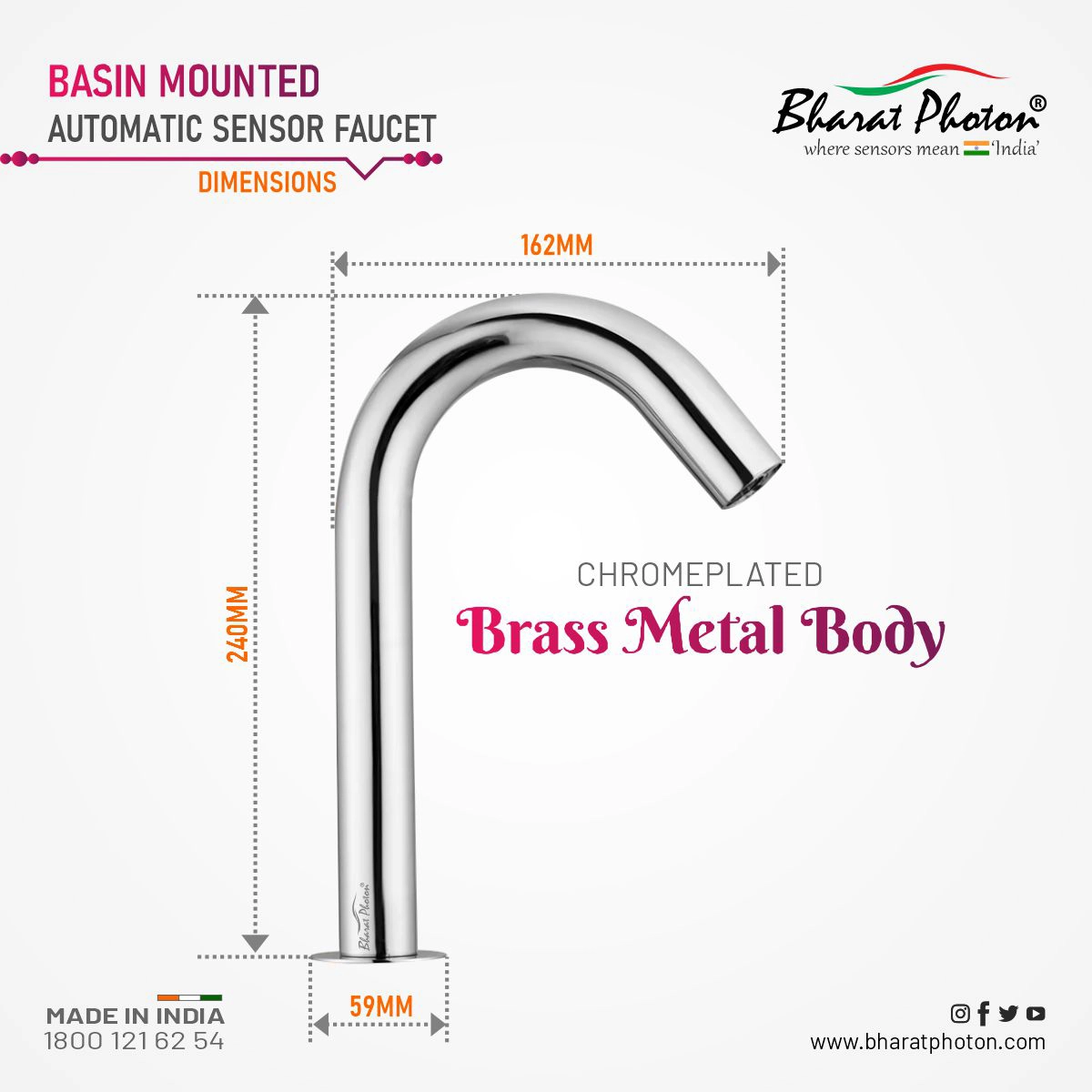

  • Chrome plated brass body for durability
  • Water-efficient performance
  • Designed for medium to large basins
  • Suitable for commercial & residential applications
  • Available in DC, AC & AC/DC power options

Specifications

  • Sensing Distance: 30–200 mm
  • Safety Shut Off: 60 seconds
  • Working Water Pressure: 0.02–0.8 MPa
  • Inlet/Outlet Connection: G1/2” (DN15)
  • Body Material: Chrome Plated Brass
  • Valve Type: Solenoid Valve

Power Options:

  • DC: 6V (4x AA Alkaline Batteries)
  • AC: 220V AC
  • AC/DC: Dual Power with battery backup

Usage Information

The BP-F29 Automatic Sensor Faucet delivers touch-free hygiene and efficient water control, making it ideal for offices, malls, hotels, hospitals, airports, educational institutions, and premium residential spaces.

Power Options Explained:

  • DC (Battery Operated): Best suited for retrofit installations where electrical wiring is not available.
  • AC (Electric Operated): Ideal for high-traffic locations with continuous power supply.
  • AC/DC (Dual Power): Recommended for uninterrupted performance with automatic battery backup during power failure.

Warranty & Support

  • 2 Years Manufacturer Warranty (against manufacturing defects)
  • Warranty covers sensor unit and internal components
  • Excludes physical damage, improper installation, and water impurity damage
  • Nationwide service support available
  • Genuine spare parts and accessories available on request

Installation

  • Basin mounted (deck mounted) installation
  • Requires standard G1/2” plumbing connection
  • AC models require 220V power supply
  • Recommended professional plumber/electrician installation
  • Ensure water pressure is within specified range for optimal performance
View full details

Frequently Asked Questions

How does the sensor tap work?

The sensor tap uses an infrared sensor to detect hand movement within its sensing range. Water flows automatically when hands are detected and stops immediately when hands are removed.

Does the tap save water?


Yes. The automatic shut-off feature ensures water flows only when required, significantly reducing water wastage compared to manual taps.

What are the available power options?

Sensor faucets are available in three power configurations:

  • DC (Battery Operated)
  • AC (Electric Operated – 220V)
  • AC/DC (Dual Power with battery backup)

What happens during a power failure?


For AC/DC models, the system automatically switches to battery backup to ensure uninterrupted operation.

Can the sensor sensitivity be adjusted?

Yes, sensor range and sensitivity can typically be adjusted during installation depending on the model.

Is the faucet suitable for commercial use?

Yes. Sensor faucets are designed for high-traffic environments such as offices, malls, hospitals, airports, hotels, and educational institutions.

What warranty is provided?

The product comes with a manufacturer warranty covering manufacturing defects. Warranty terms may vary by model.
