How to Retrofit Manual Flush Valves with Exposed Urinal Sensors Without Breaking Tiles

Many offices, schools, universities, and commercial buildings still use traditional manual urinal flush valves that require users to physically press a lever. Over time, these manual systems can lead to poor hygiene, high water consumption, and frequent repair calls. Fortunately, converting these manual fixtures to touchless systems does not require a complete washroom renovation.

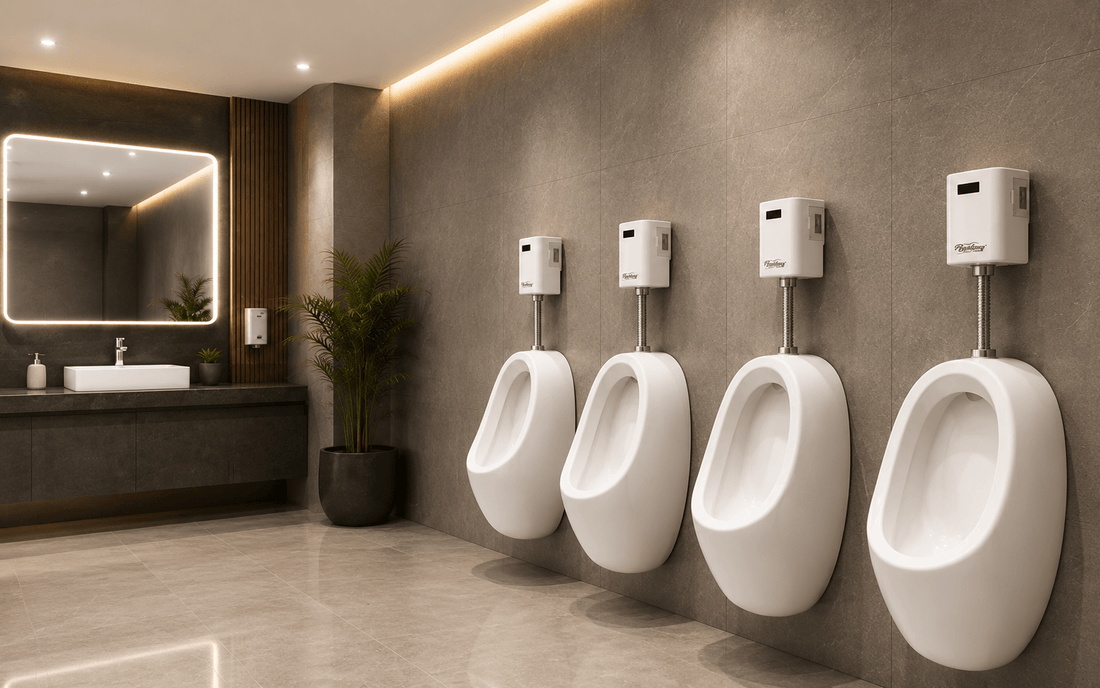

By installing an exposed urinal sensor flush valve, facilities can upgrade to automatic flushing with minimal disruption and cost, keeping the existing wall finishes and tiles intact.

The Advantages of an Exposed Retrofit Upgrade

Unlike concealed flushing systems that require breaking tiles, rerouting wall plumbing, and plastering, exposed urinal sensors are installed directly on the existing external water line. The sensor unit and flush valve remain fully accessible, which makes installation quick and simplifies future maintenance. This method is an excellent solution for facility managers who want to modernize their restrooms while keeping renovation budgets and downtime under control.

Step-by-Step Installation Overview

Upgrading a manual flush valve to an exposed sensor unit is a straightforward process for a qualified plumber:

Step 1: Inspect the Plumbing
Examine the existing pipe size, water pressure, and condition of the manual valve. Ensure that the water inlet line is clean and that the pipe thread is compatible with the new sensor valve.

Step 2: Shut Off the Water Supply
Turn off the main water valve leading to the restroom line to prevent leaks during the installation process.

Step 3: Remove the Manual Valve
Carefully unscrew and remove the old manual flush lever and pipe connection, taking care not to damage the threads on the wall connection or the urinal inlet spud.

Step 4: Install the Sensor Unit
Mount the exposed sensor valve assembly onto the water supply line. Connect the outlet pipe of the sensor valve to the urinal inlet. Use high-quality thread sealant or Teflon tape to ensure all connections are completely watertight.

Step 5: Connect the Power Source
Install standard AA alkaline batteries into the sensor's battery compartment (for battery-powered units) or connect the power adapter to the pre-routed electrical line.

Step 6: Test and Adjust
Turn the main water supply back on and check all connections for leaks. Walk in front of the sensor to test the detection range and verify that the flush cycle starts and stops correctly when you step away.

Practical Tips for Long-Term Operation

• Use Quality Batteries: For DC models, use high-quality alkaline batteries to ensure the system operates reliably for 12 to 18 months before needing a replacement.
• Regular Sensor Cleaning: Wipe the sensor window periodically with a soft, damp cloth to remove dust and water marks. Avoid abrasive scrubbers that can scratch the sensor lens.
• Clean the Solenoid Filter: Periodically clean the internal mesh filter screen to prevent sediment or debris in the water line from clogging the valve.
